Technical Specifications
Nominal diameter DN 50-1200
Nominal pressure PN10, PN16, PN25, PN40
Medium temperature -60 °C ... +180 °C
Types of Valve End Connections Flanged, Between Flanges
Sealing Class «А»
Mounting Position Any, except for downward-driven devices
Types of Control — manual (lever)
— manual (handwheel)— manual (gearbox)— pneumatic actuation
— electric actuation
Warranty Period 12 months
Average Service Life 10 000 cycles
Guaranteed Service Life Not less than 5000 cycles
Technical Drawings and Dimensions

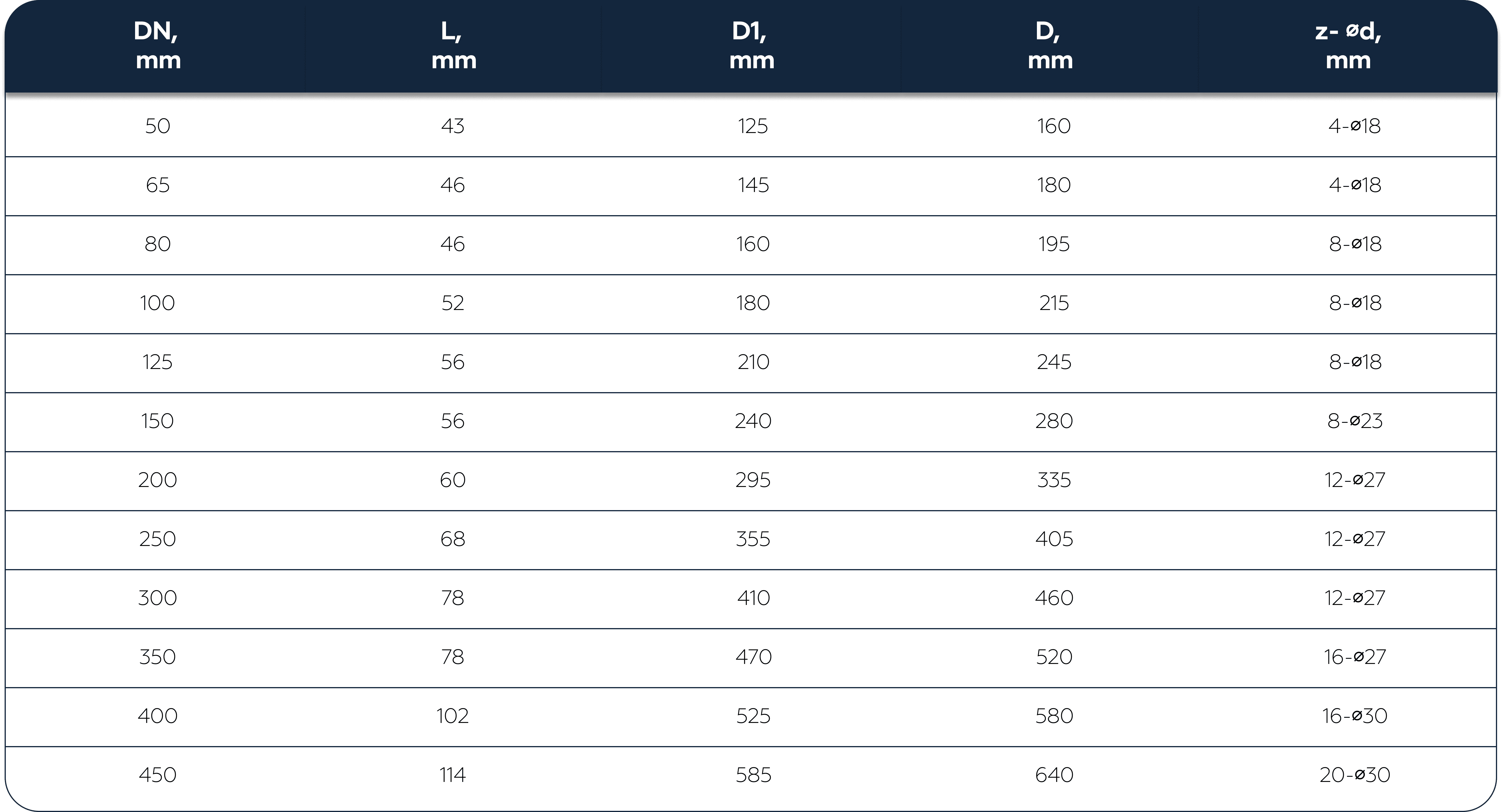

Table of Basic Dimensions
Nominal diameter PN16
Tabular values are provided upon request for DN500 .... DN1200
Product Description
The Butterfly Valve 307 is used for controlling and shutting off the flow of the working medium.
A characteristic feature of this valve is the presence of a polytetrafluoroethylene (PTFE) seal, which provides high resistance to chemically aggressive environments. The valve housing (body) has a disassemblable construction (anchoring of two housing parts with screws), which ensures convenience in operation and seal replacement, as well as increases product durability.
Design features of the model:
- High chemical resistance of the seal and disc to chemically aggressive environments
- Sealing class «A»
- Disassemblable housing (body)
