Ball check valve 702
Technical Specifications
-
Nominal diameter
— DN 40-600
-
Nominal pressure
— PN 10, PN16
-
Medium temperature
— -60 °C ... +120 °C
-
Types of Valve End Connections
— Flanged, welded
-
Leakage Class
— «А»
-
Warranty Period
— 12 months
-
Mounting Position
— Horizontally, vertically
-
Types of Control
— Automatic (ball)
-
Average Service Life
— 10 000 cycles
-
Guaranteed Service Life
— Not less than 5000 cycles

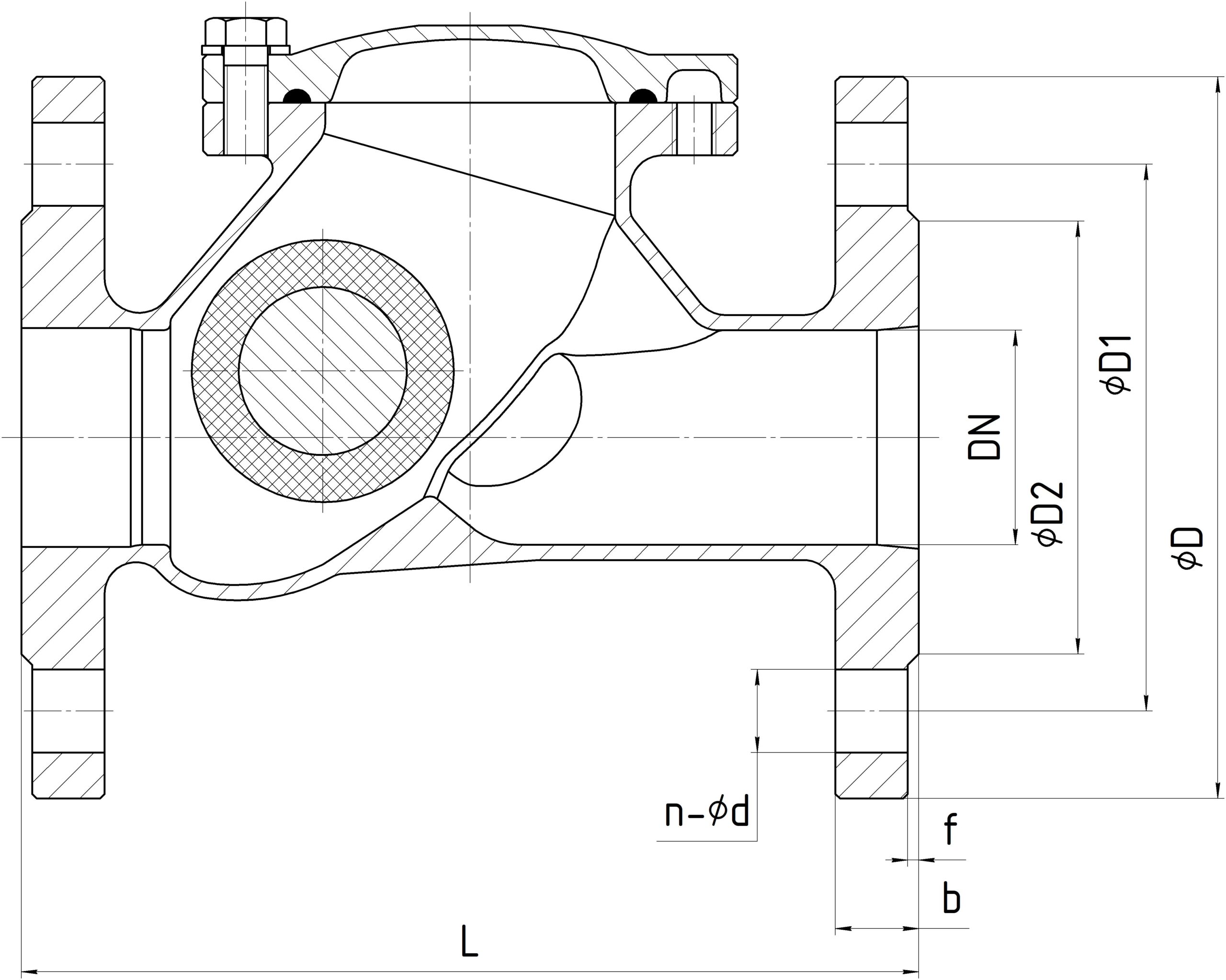

Technical Drawings and Dimensions
The ball check valve model 702 is designed to ensure unidirectional flow in installations where the following are important:
-
High resistance to contamination and solid particles
-
Maintenance-free operation and reliable performance
-
Long service life even under harsh process conditions
The valve’s design allows for automatic shutoff of the flow using a freely moving ball that shifts due to pressure differences. The absence of complex mechanisms makes this valve extremely durable and easy to operate, even in aggressive or particle-laden environments.
Design features of the model:
-
Intended for industrial installations with water, wastewater, contaminated or chemically aggressive liquids
-
No spring – the ball operates based on pressure differential
-
Self-cleaning ball available (in versions with appropriate surface finish)
-
Low pressure drop thanks to simple flow geometry
-
Easy maintenance – access to internal components without removing the valve from the pipeline (in flanged and bolted versions)
Working media:
-
Water, wastewater, liquids with suspended solids
-
Petroleum products, oils, gasoline
-
Acids and alkalis (depending on material version)
-
Chemically aggressive media (including those with phosphates, sulfur)
-
Liquids containing solids: sand, coal, sludge
Body / ball materials:
🔹 Carbon steels:
ASTM A216 WCB (1.0619)
🔹 Low-alloy steels:
ASTM A352 LCB / LC1 (~P355NL1 / 1.0566)
🔹 Stainless / corrosion-resistant steels:
ASTM A351 CF8 / AISI 304 (1.4308 / 1.4301)
ASTM A351 CF8M / AISI 316 (1.4408 / 1.4401)
ASTM A351 CF3 / AISI 304L (1.4306 / 1.4306)
ASTM A351 CF3M / AISI 316L (1.4409 / 1.4404)
AISI 904L (1.4539)
