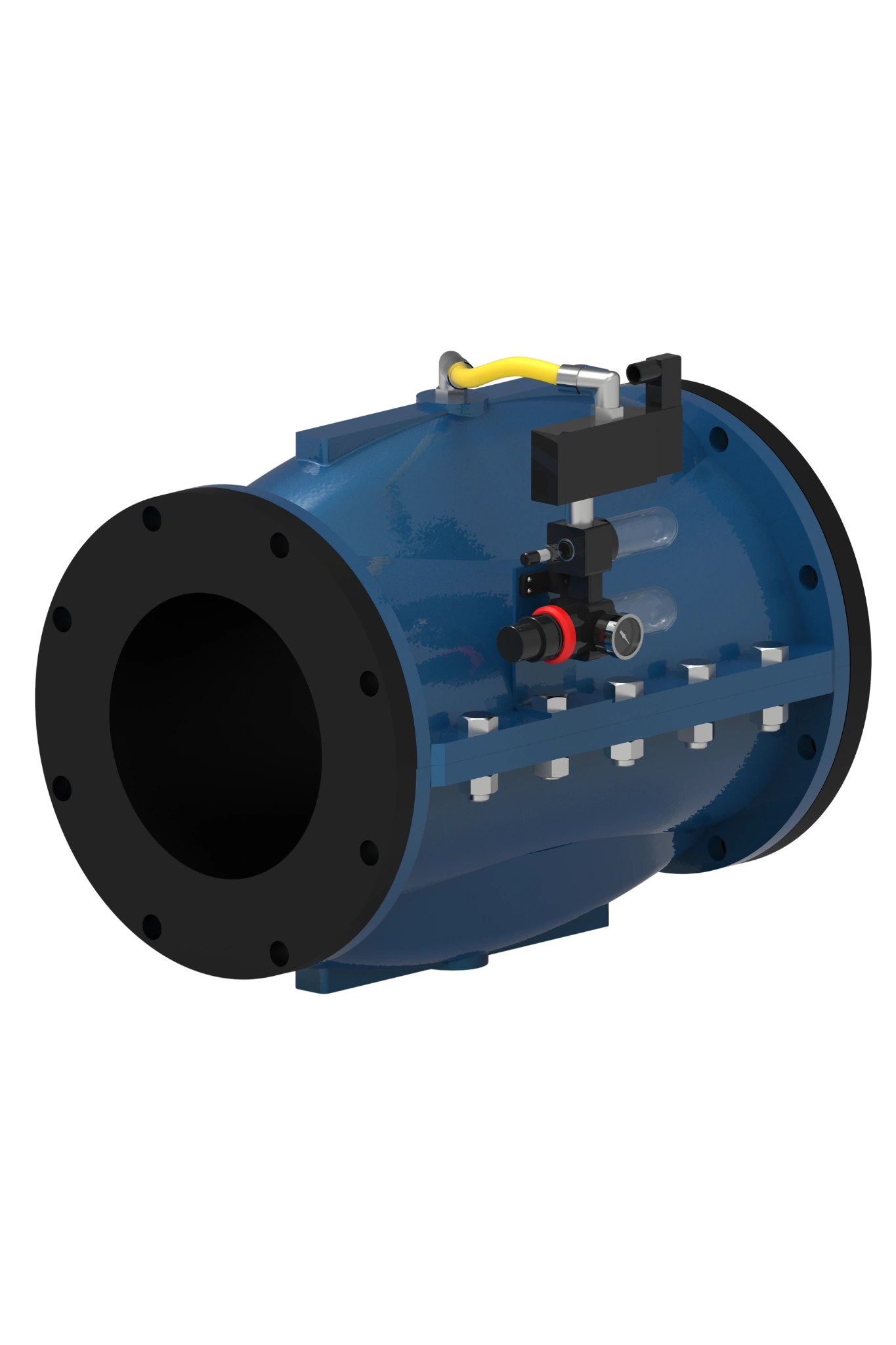

Pneumatic pinch valve 203P

DN25-450 PN2-6

Own production

Certificates and full package of documents

Production time from 20 days

Technical Specifications

Nominal diameter — DN25-450
Nominal pressure — PN2-PN6
Medium temperature — -60 °C ... +160 °C
Body type — Two-piece body
Leakage Class — «А»
Mounting Position — Optional
Types of Control — pneumatic actuation
Warranty Period — 12 months
Average Service Life — 6 000 cycles
Guaranteed Service Life — Not less than 4000 cycles

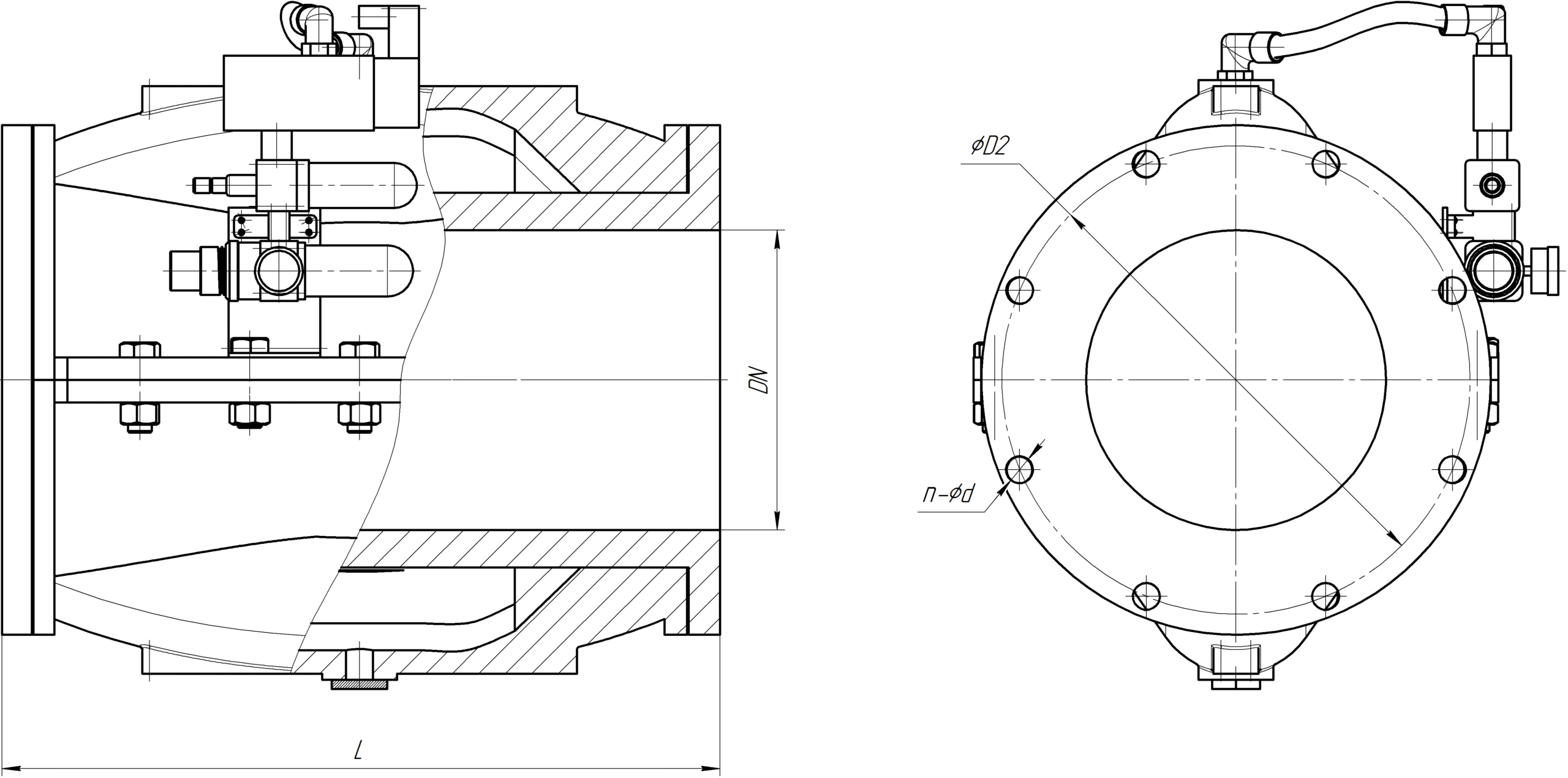

Technical Drawings and Dimensions

Product Description

Pinch Valve Model 203P is designed for shutting off the flow of media containing solid particles, abrasive and/or chemically aggressive substances. Thanks to its construction, it is suitable for installations requiring high durability, reliability, and ease of maintenance.

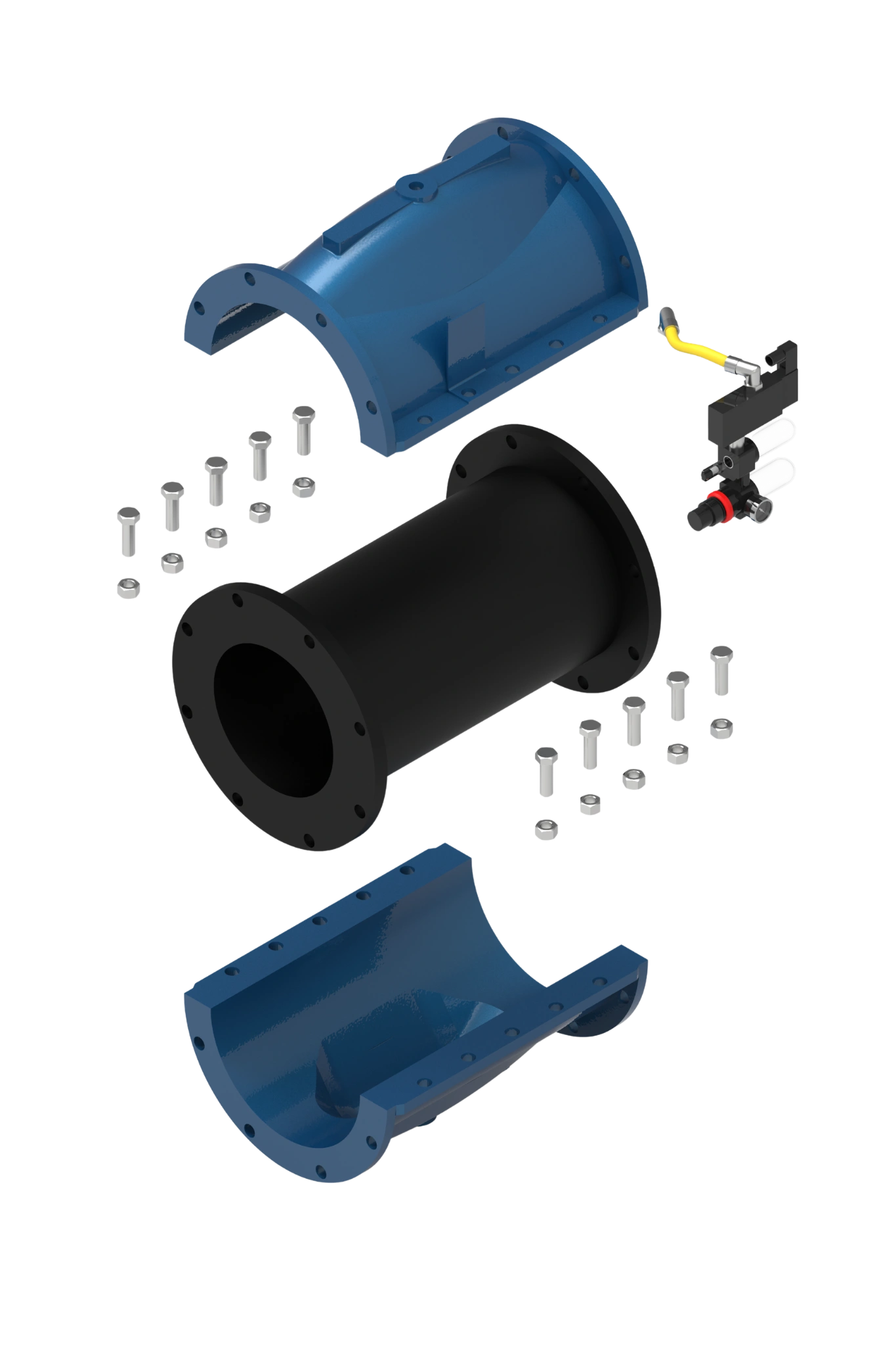

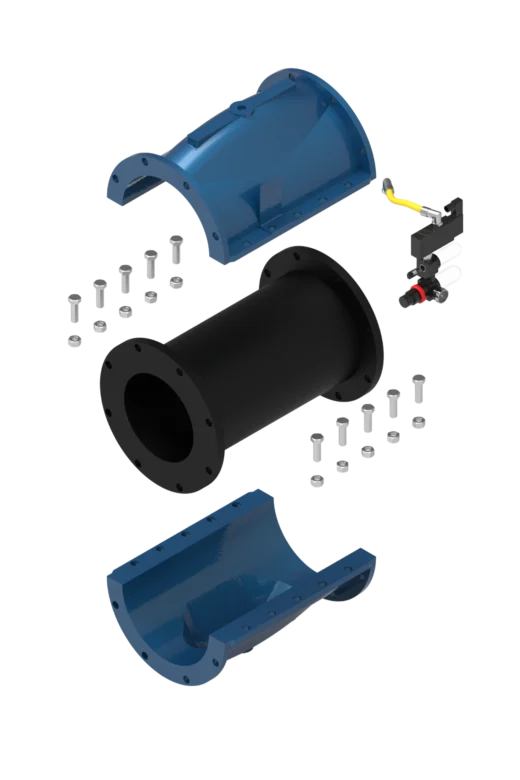

Design features of the model:

Two-piece flanged body
Body split along the pipeline axis
Body joint sealed with a 5 mm Teflon gasket
Body assembled with bolts and nuts (tightening torque specified in the technical documentation)
Flexible cylindrical sleeve (liner) with flanges
Possibility to use various elastomers

Recommended applications:

Chemical industry
Mining and processing industry
Wastewater treatment plants
Pulp and paper industry, and other systems for transporting abrasive or contaminated media

Working media:
