Ball Valve 408
DN25-250 PN16-63
Own production
Certificates and full package of documents
Production time from 20 days
Technical Specifications
-
Nominal diameter
— DN 25-250
-
Nominal pressure
— PN16-PN63
-
Medium temperature
— -60 °C ... +240 °C
-
Types of Valve End Connections
— Flanged, welded
-
Leakage Class
— «А»
-
Mounting Position
— Any, except for downward-driven devices
-
Types of Control
— — manual (lever)
— manual (handwheel)— manual (gearbox)— pneumatic actuation
— electric actuation
-
Warranty Period
— 12 months
-
Average Service Life
— 10 000 cycles
-
Guaranteed Service Life
— Not less than 5000 cycles

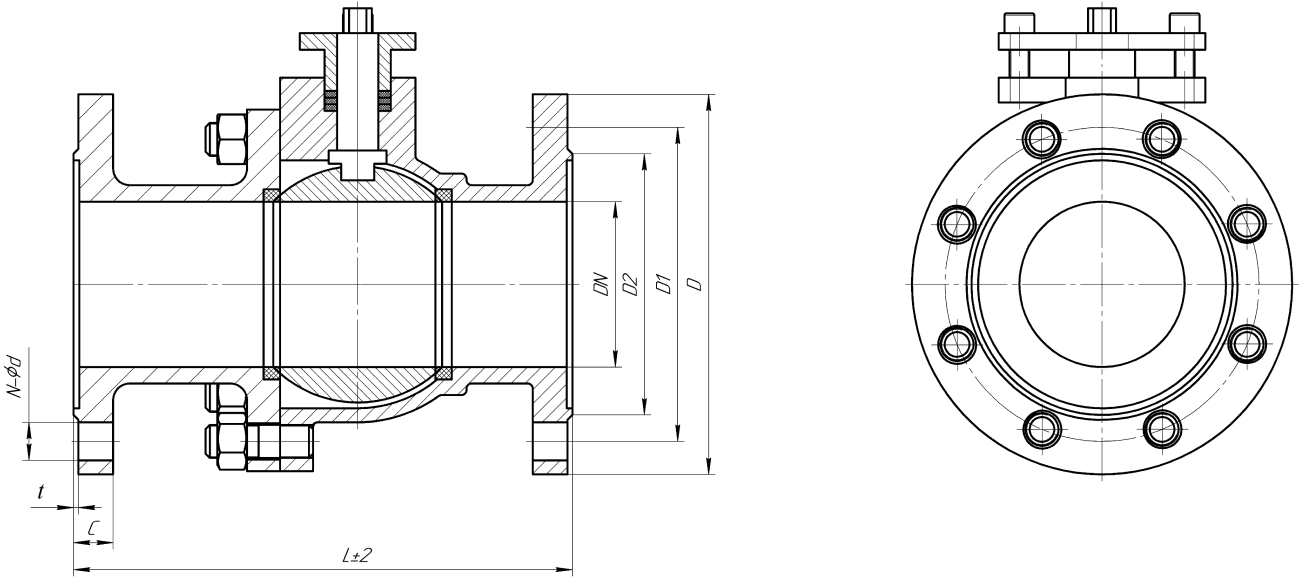

Technical Drawings and Dimensions
Nominal diameter PN16
Table of Basic Dimensions
| DN, mm |
L, mm |
D, mm |
D1, mm |
D2, mm |
f, mm |
b, mm |
n-ød, mm |
|---|---|---|---|---|---|---|---|
| 15 | 130 | 95 | 65 | 45 | 2 | 14 | 4-14 |
| 20 | 130 | 105 | 75 | 58 | 2 | 16 | 4-14 |
| 25 | 140 | 115 | 85 | 68 | 2 | 18 | 4-14 |
| 32 | 165 | 140 | 100 | 78 | 2 | 18 | 4-18 |
| 40 | 165 | 150 | 110 | 88 | 3 | 20 | 4-18 |
| 50 | 200 | 165 | 125 | 102 | 3 | 22 | 4-18 |
| 65 | 222 | 185 | 145 | 122 | 3 | 24 | 4-18 / 8-18 |
| 80 | 241 | 200 | 160 | 138 | 3 | 24 | 8-18 |
| 100 | 280 | 220 | 180 | 158 | 3 | 26 | 8-18 |
| 125 | 320 | 250 | 210 | 188 | 3 | 28 | 8-18 |
| 150 | 360 | 285 | 240 | 212 | 3 | 28 | 8-22 |
| 200 | 457 | 340 | 295 | 268 | 3 | 30 | 12-22 |
| 250 | 533 | 405 | 355 | 320 | 3 | 31 | 12-26 |
Product Description
Ball Valve Model 408 is designed for shutting off the flow of the working medium.
A characteristic feature of this model is its dismantling (split) body and the option of manufacturing it in a two-piece version. The valve is available in a full bore or reduced bore design. The disassemblable construction allows for easy replacement of seals and the ball, which significantly facilitates valve maintenance.
Design Features:
- Dismantling (split) body (2-piece construction)
- Full bore or reduced bore design
- Easy access to internal valve components
Body Materials:
🔹 Carbon steels
- ASTM A216 WCB (1.0619, GP240GH)
- ASTM A105 (1.0460)
🔹 Stainless steels (corrosion-resistant)
- ASTM A351 CF8 (1.4308) / AISI 304 / A182 F304 (1.4301)
- ASTM A351 CF8M (1.4408) / AISI 316 / A182 F316 (1.4401)
- A351 CF3 (1.4306) / AISI 304L / A182 F304L
- A351 CF3M (1.4409) / AISI 316L (1.4404)
- AISI 316Ti (1.4571)
🔹 Special steels (duplex)
- Duplex 2205 (UNS S31803/S32205, 1.4462)
- Super Duplex 2507 (UNS S32750 / 1.4410)
Ball Materials:
- ASTM A351 CF8 (1.4308) / AISI 304 / A182 F304 (1.4301)
- ASTM A351 CF8M (1.4408) / AISI 316 / A182 F316 (1.4401)
- A351 CF3 (1.4306) / AISI 304L / A182 F304L
- A351 CF3M (1.4409) / AISI 316L (1.4404)
Seat Materials:
- PTFE
- RPTFE
- PEEK
- Metal-to-metal
