Knife Gate Valve 104

DN50-1000 PN10-16

Own production

Certificates and full package of documents

Production time from 20 days

Technical Specifications

Nominal diameter — DN 50-1000
Nominal pressure — PN10-16
Medium temperature — -30 °C ... +200 °C
Types of Valve End Connections — Wafer, lug
Leakage Class — «А»
Mounting Position — Any, except for downward-driven devices
Types of Control — — manual (lever) 
— manual (handwheel)
— manual (gearbox)
— pneumatic actuation 
— electric actuation
Warranty Period — 12 months
Average Service Life — 2500 cycles
Guaranteed Service Life — Not less than 1000 cycles

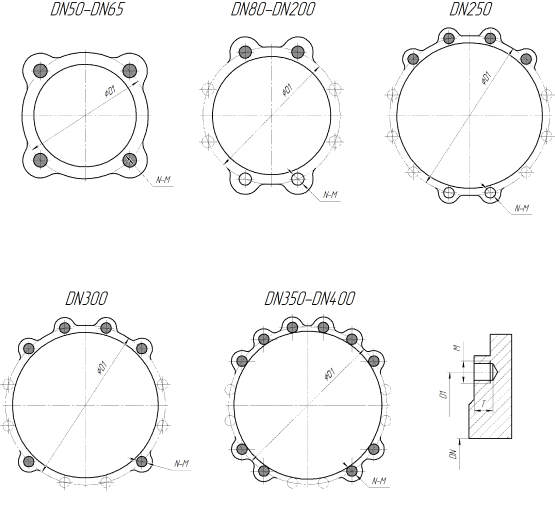

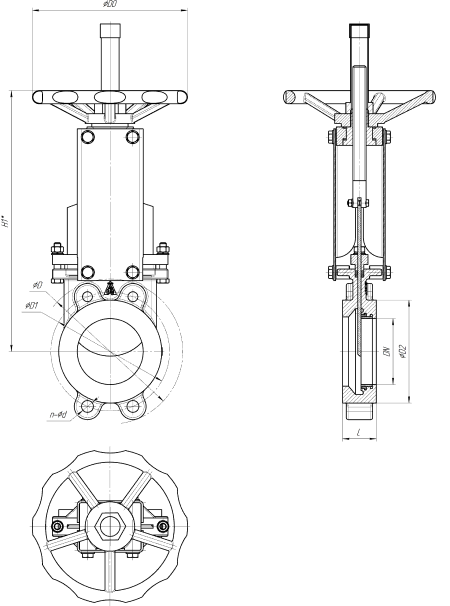

Technical Drawings and Dimensions

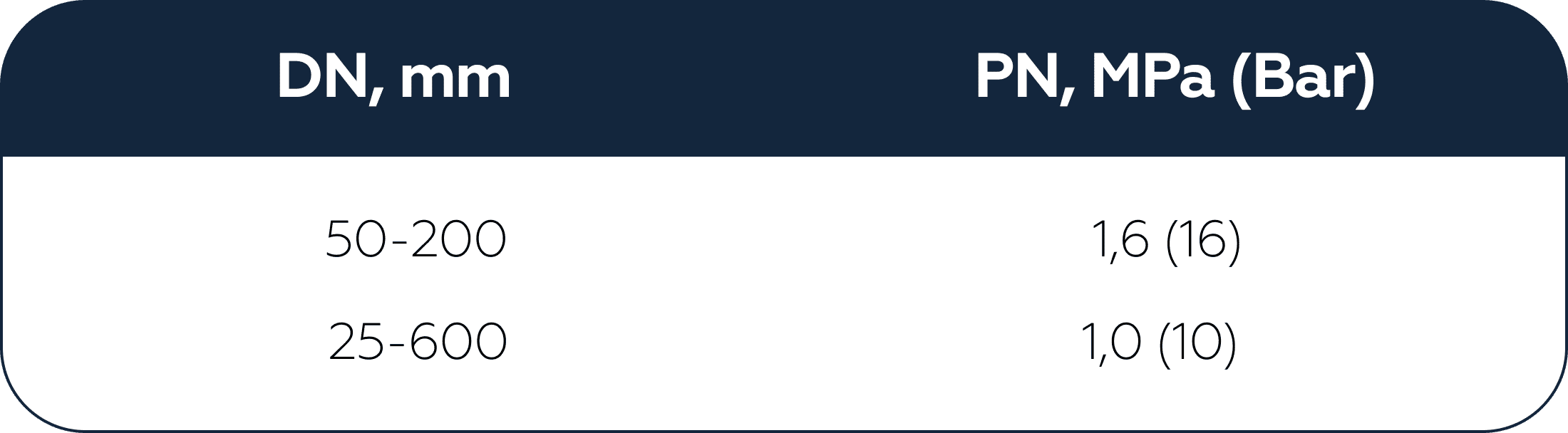

Nominal Pressure PN10

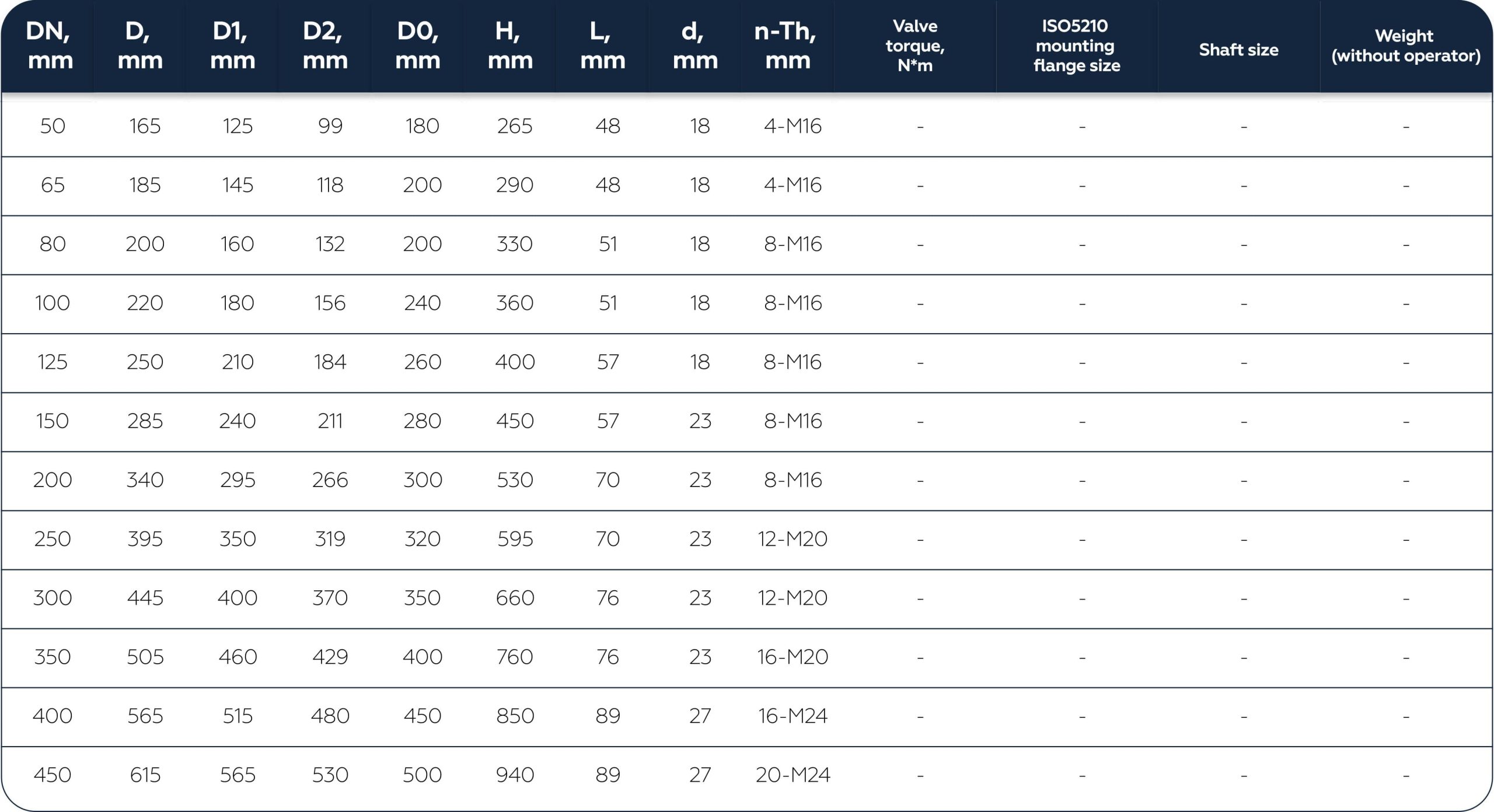

Basic Dimensions Table

DN	D, mm	D1, mm	D2, mm	L, mm	n-ød
50	165	125	102	48	4-M16
65	185	145	122	48	4-M16 / 8-M16
80	200	160	138	51	8-M16
100	220	180	158	51	8-M16
125	250	210	188	57	8-M16
150	285	240	212	57	8-M20
200	340	295	268	70	8-M20
250	395	350	320	70	12-M20
300	445	400	370	76	12-M20
350	505	460	430	76	16-M20
400	565	515	482	89	16-M24
450	615	565	532	89	20-M24
500	670	620	585	114	20-M24
600	780	725	685	114	20-M27

Tabular values for diameters DN700–DN1000 and for pressure PN16 are available upon request

Product Description

Knife Gate Valve Model 104 is equipped with a dismountable, two-piece body and a U-shaped seat.

During valve opening, the seal conforms to the internal contour of the body, ensuring full flow-through without stagnation zones. This design prevents fine abrasive particles from entering the valve’s “gate pocket,” resulting in high cycling performance and long service life.

Design Features:

End seal providing bi-directional tightnes
Two-piece dismountable body
Wide selection of body and sealing materials
During valve opening, the seal adapts to the body cross-section, ensuring unrestricted flow without stagnation areas

Working Media:
