Knife Gate Valve 108

DN50-800 PN10-16

Own production

Certificates and full package of documents

Production time from 20 days

Technical Specifications

Nominal diameter — DN 50-800
Nominal pressure — PN 6-16
Medium temperature — -20 °C ... +100 °C
Types of Valve End Connections — Welded, Socket
Leakage Class — «А»
Mounting Position — Any, except for downward-driven devices
Types of Control — — manual (lever) 
— manual (handwheel)
— manual (gearbox)
— pneumatic actuation 
— electric actuation
Warranty Period — 12 months
Average Service Life — 2500 cycles
Guaranteed Service Life — Not less than 1000 cycles

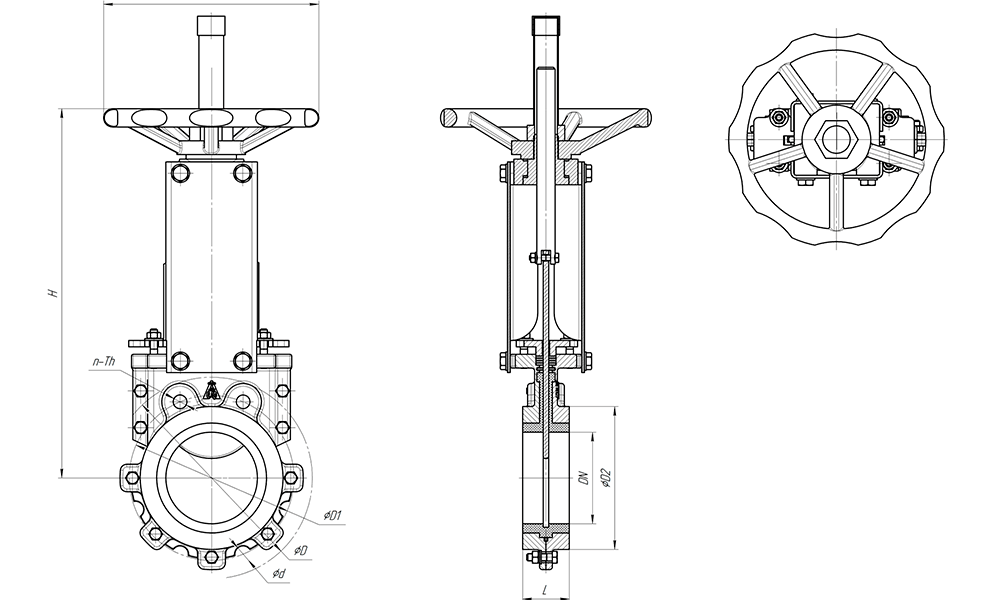

Technical Drawings and Dimensions

Nominal Pressure PN10

Basic Dimensions Table

DN	D, mm	D1, mm	D2, mm	L, mm	n-ød
50	165	125	102	48	4-M16
65	185	145	122	48	4-M16 / 8-M16
80	200	160	138	51	8-M16
100	220	180	158	51	8-M16
125	250	210	188	57	8-M16
150	285	240	212	57	8-M20
200	340	295	268	70	8-M20
250	395	350	320	70	12-M20
300	445	400	370	76	12-M20
350	505	460	430	76	16-M20
400	565	515	482	89	16-M24
450	615	565	532	89	20-M24

Tabular values for diameters DN500–DN800 and for pressure PN16 are available upon request

Product Description

Knife gate valve model 108 has a two-piece body and sealing made of polyurethane.

This design allows the valve to be used in environments with a high content of abrasive particles and significantly extends maintenance intervals. The valve geometry ensures free flow of the working medium without stagnation zones, eliminating the risk of abrasive particle accumulation in the lower part of the body.

Design features of the model:

Monolithic polyurethane sealing at the end, double-sided tightness
Detachable, two-piece body
Full flow
High resistance of the valve to environments with high abrasive content thanks to the “PU” sealing and the lack of contact between the working medium and the valve body

Operating media:
